HIGH PERFORMANCE SMART FUME HOOD
JAD SMART SERIES HIGH PERFORMANCE SMART FUME HOOD A New Standard in Laboratory Safety and Efficiency - JAD Solutions proudly introduces the Smart Series Fume Hood, a cutting-edge addition to our laboratory safety solutions. Designed with a focus on energy efficiency, advanced control systems, rapid response, and user-friendly interface, the Smart Series sets a new standard for laboratory fume hoods.

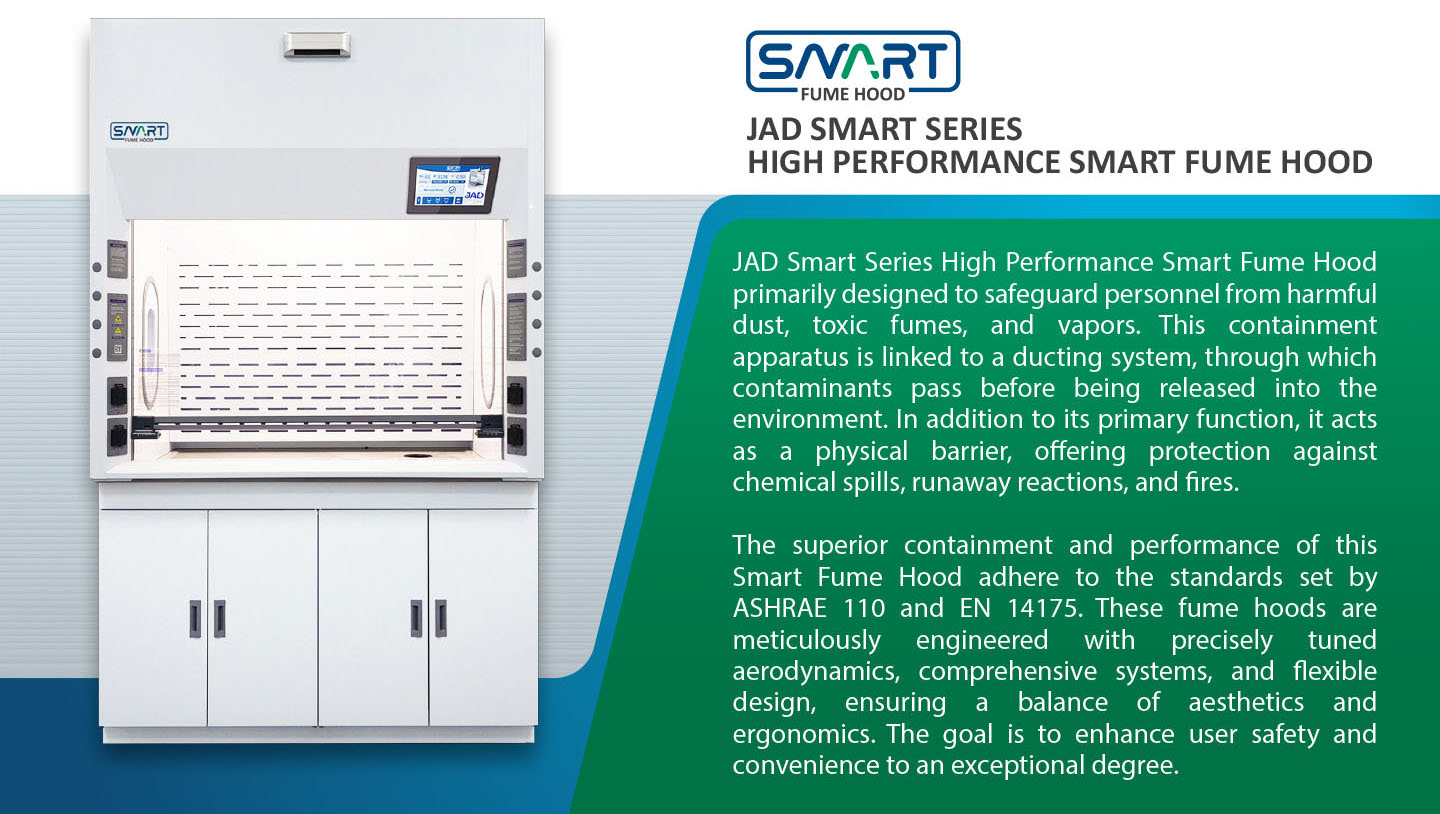

JAD SMART SERIES HIGH PERFORMANCE SMART FUME HOOD JAD Smart Series High Performance Smart Fume Hood primarily designed to safeguard personnel from harmful dust, toxic fumes, and vapors. This containment apparatus is linked to a ducting system, through which contaminants pass before being released into the environment. In addition to its primary function, it acts as a physical barrier, offering protection against chemical spills, runaway reactions, and fires. The superior containment and performance of this Smart Fume Hood adhere to the standards set by ASHRAE 110 and EN 14175. These fume hoods are meticulously engineered with precisely tuned aerodynamics, comprehensive systems, and flexible design, ensuring a balance of aesthetics and ergonomics. The goal is to enhance user safety and convenience to an exceptional degree.

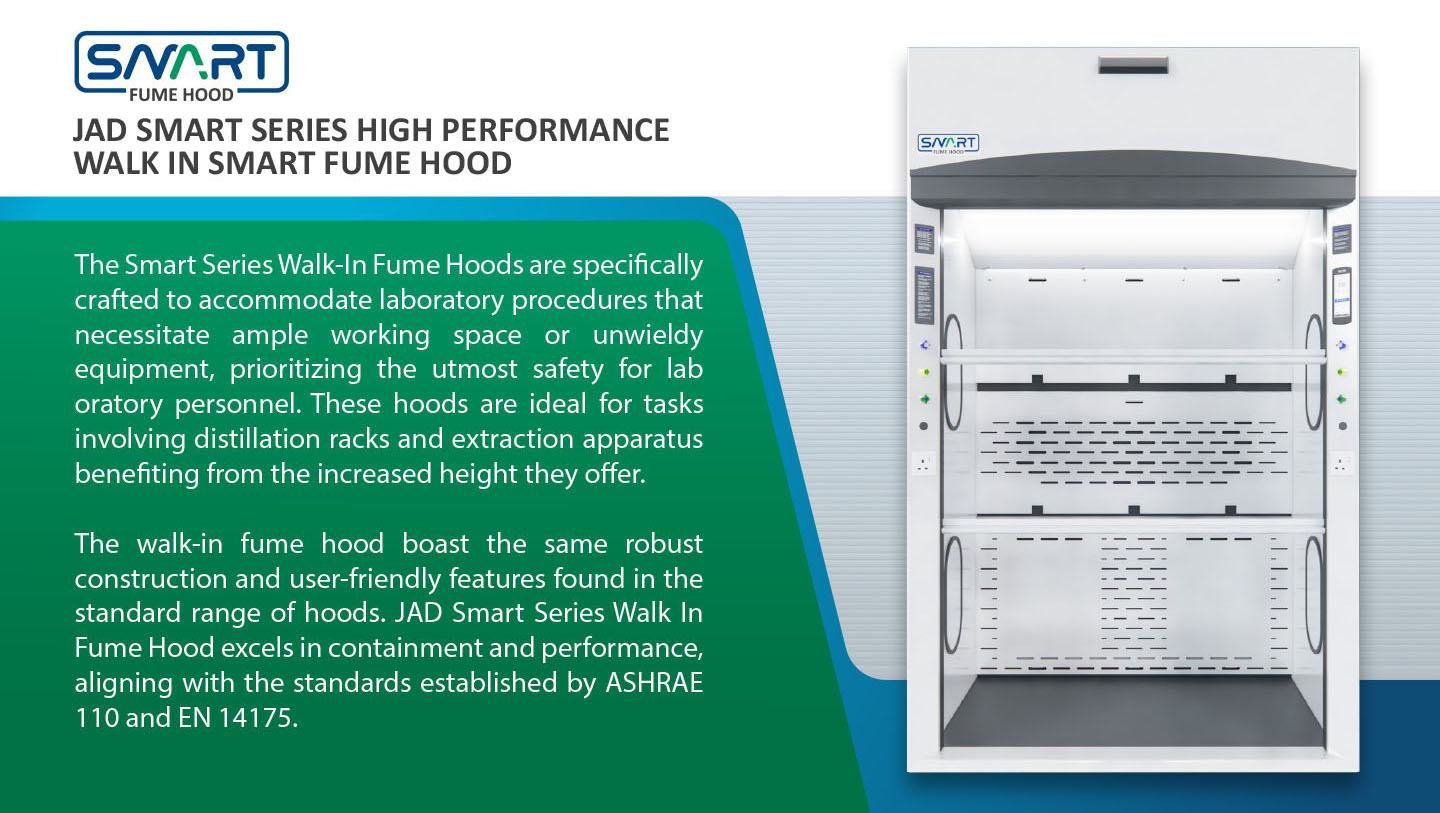

JAD SMART SERIES HIGH PERFORMANCE WALK IN SMART FUME HOOD The Smart Series Walk-In Fume Hoods are specifically crafted to accommodate laboratory procedures that necessitate ample working space or unwieldy equipment, prioritizing the utmost safety for laboratory personnel. These hoods are ideal for tasks involving distillation racks and extraction apparatus benefiting from the increased height they offer. The walk-in fume hood boast the same robust construction and user-friendly features found in the standard range of hoods. JAD Smart Series Walk In Fume Hood excels in containment and performance, aligning with the standards established by ASHRAE 110 and EN 14175.

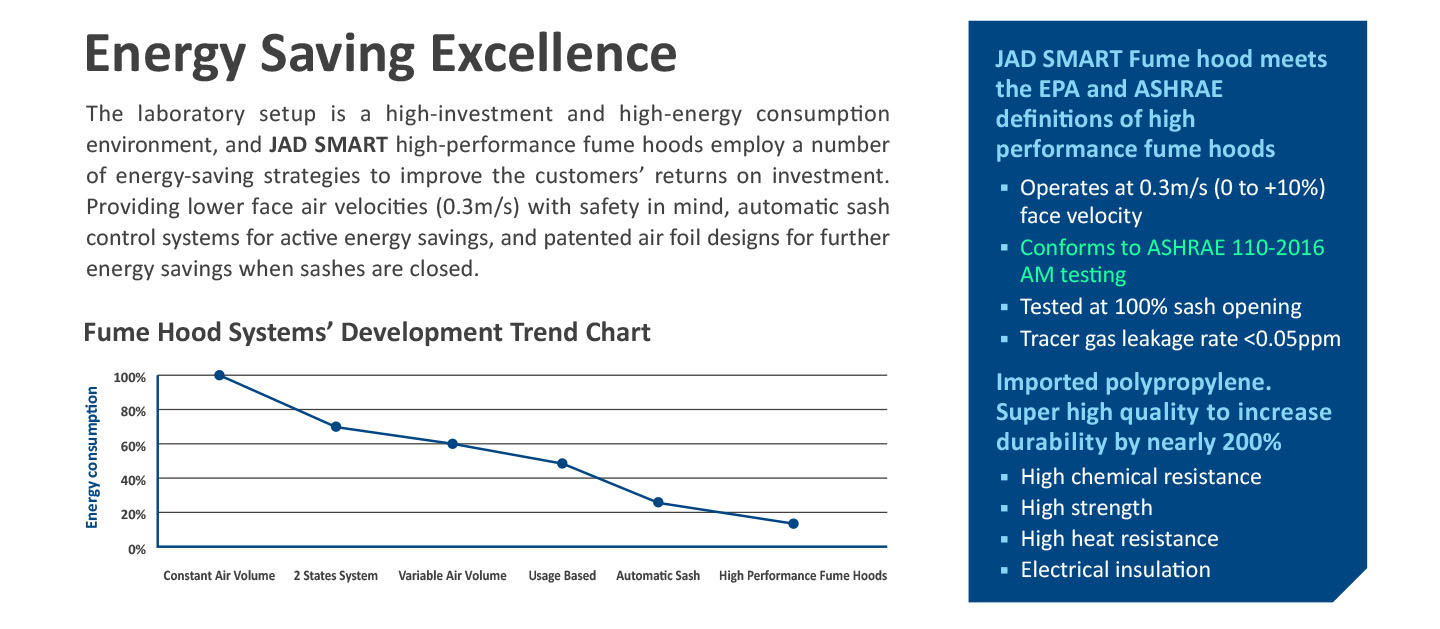

Energy Saving Excellence The laboratory setup is a high-investment and high-energy consumption environment, and JAD SMART high-performance fume hoods employ a number of energy-saving strategies to improve the customers' returns on investment. Providing lower face air velocities (0.3m/s) with safety in mind, automatic sash control systems for active energy savings, and patented air foil designs for further energy savings when sashes are closed. JAD SMART Fume hood meets the EPA and ASHRAE definitions of high performance fume hoods Operates at 0.3m/s (0 to +10%) face velocity . Conforms to ASHRAE 110-2016 AM testing . Tested at 100% sash opening . Tracer gas leakage rate <0.05ppm Imported polypropylene. Super high quality to increase durability by nearly 200% . High chemical resistance · High strength . High heat resistance . Electrical insulation

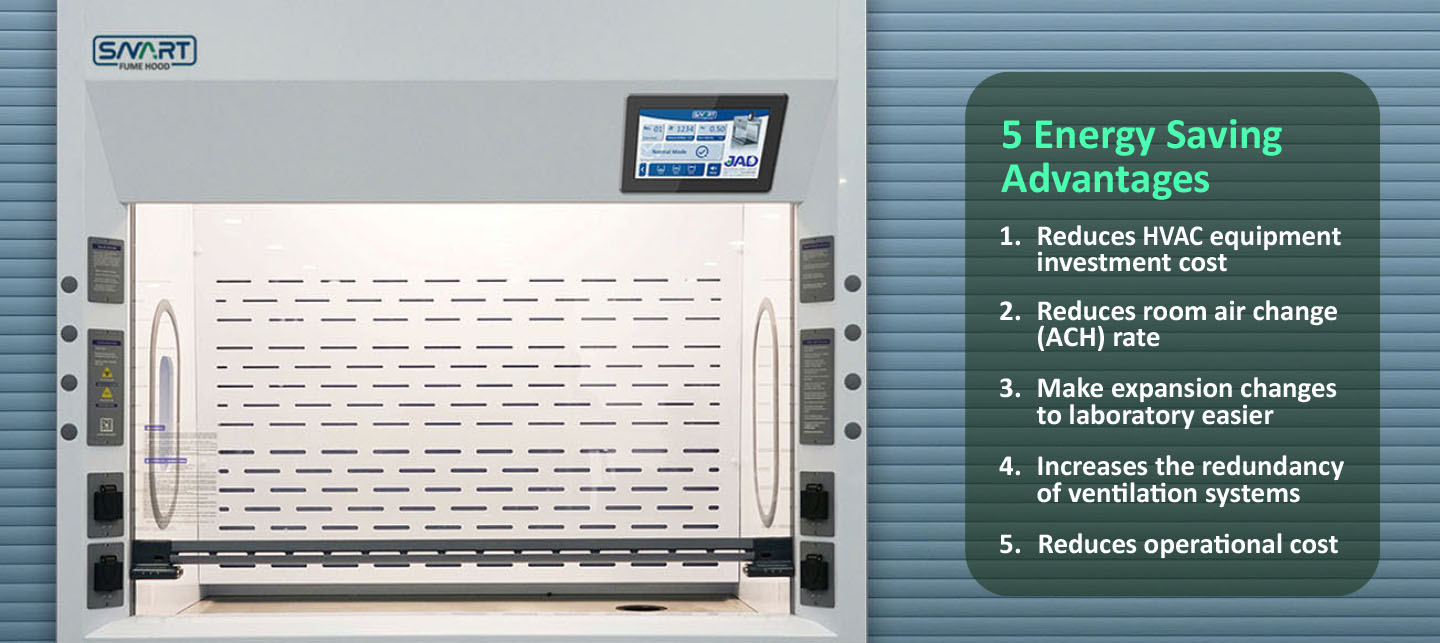

5 Energy Saving Advantages 1. Reduces HVAC equipment investment cost 2. Reduces room air change (ACH) rate 3. Make expansion changes to laboratory easier 4. Increases the redundancy of ventilation systems 5. Reduces operational cost

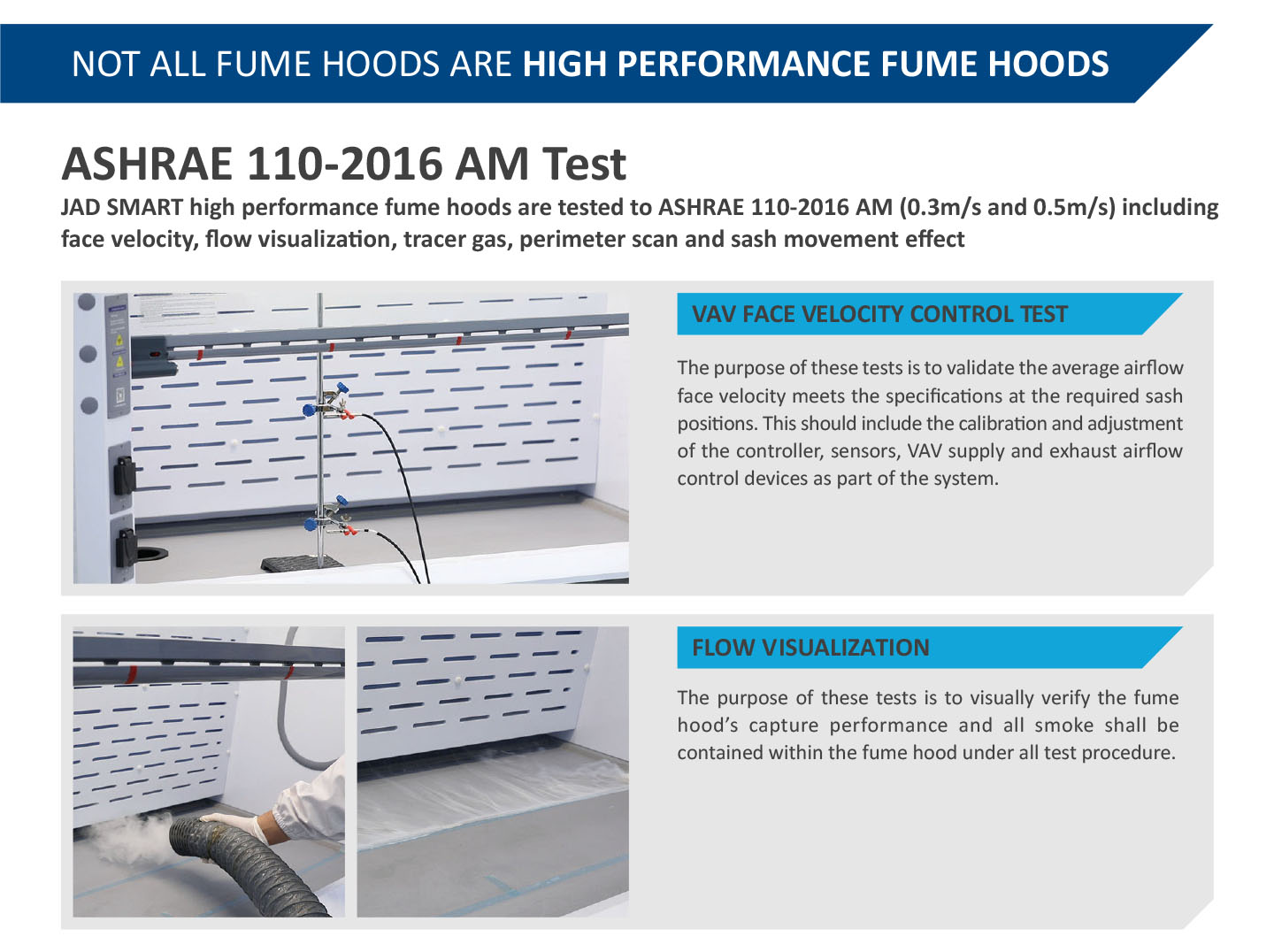

NOT ALL FUME HOODS ARE HIGH PERFORMANCE FUME HOODS ASHRAE 110-2016 AM Test JAD SMART high performance fume hoods are tested to ASHRAE 110-2016 AM (0.3m/s and 0.5m/s) including face velocity, flow visualization, tracer gas, perimeter scan and sash movement effect VAV FACE VELOCITY CONTROL TEST The purpose of these tests is to validate the average airflow face velocity meets the specifications at the required sash positions. This should include the calibration and adjustment of the controller, sensors, VAV supply and exhaust airflow control devices as part of the system. FLOW VISUALIZATION The purpose of these tests is to visually verify the fume hood's capture performance and all smoke shall be contained within the fume hood under all test procedure.

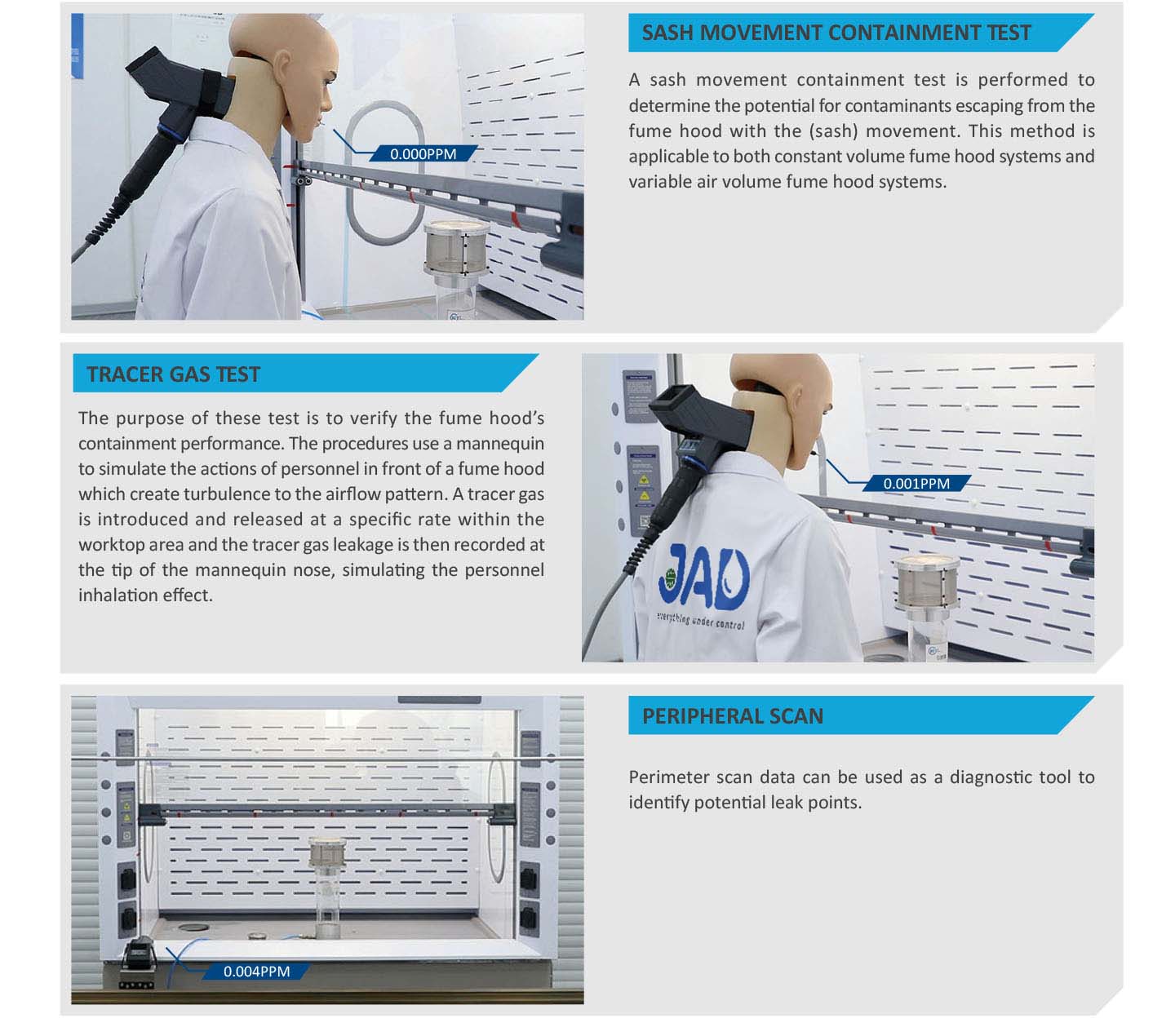

SASH MOVEMENT CONTAINMENT TEST A sash movement containment test is performed to determine the potential for contaminants escaping from the fume hood with the (sash) movement. This method is applicable to both constant volume fume hood systems and variable air volume fume hood systems. TRACER GAS TEST The purpose of these test is to verify the fume hood's containment performance. The procedures use a mannequin to simulate the actions of personnel in front of a fume hood which create turbulence to the airflow pattern. A tracer gas is introduced and released at a specific rate within the worktop area and the tracer gas leakage is then recorded at the tip of the mannequin nose, simulating the personnel inhalation effect. PERIPHERAL SCAN Perimeter scan data can be used as a diagnostic tool to identify potential leak points.

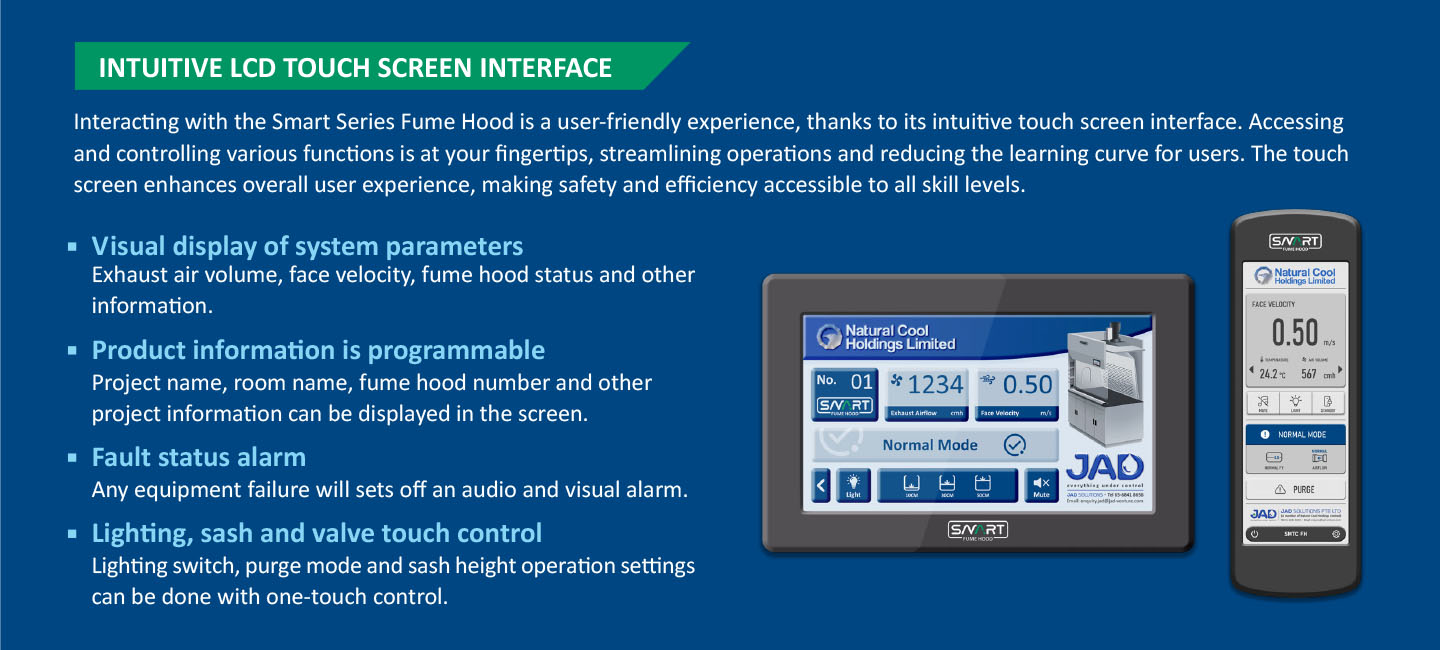

INTUITIVE LCD TOUCH SCREEN INTERFACE Interacting with the Smart Series Fume Hood is a user-friendly experience, thanks to its intuitive touch screen interface. Accessing and controlling various functions is at your fingertips, streamlining operations and reducing the learning curve for users. The touch screen enhances overall user experience, making safety and efficiency accessible to all skill levels. Visual display of system parameters - Exhaust air volume, face velocity, fume hood status and other information. Product information is programmable - Project name, room name, fume hood number and other project information can be displayed in the screen. Fault status alarm - Any equipment failure will sets off an audio and visual alarm. Lighting, sash and valve touch control - Lighting switch, purge mode and sash height operation settings can be done with one-touch control.

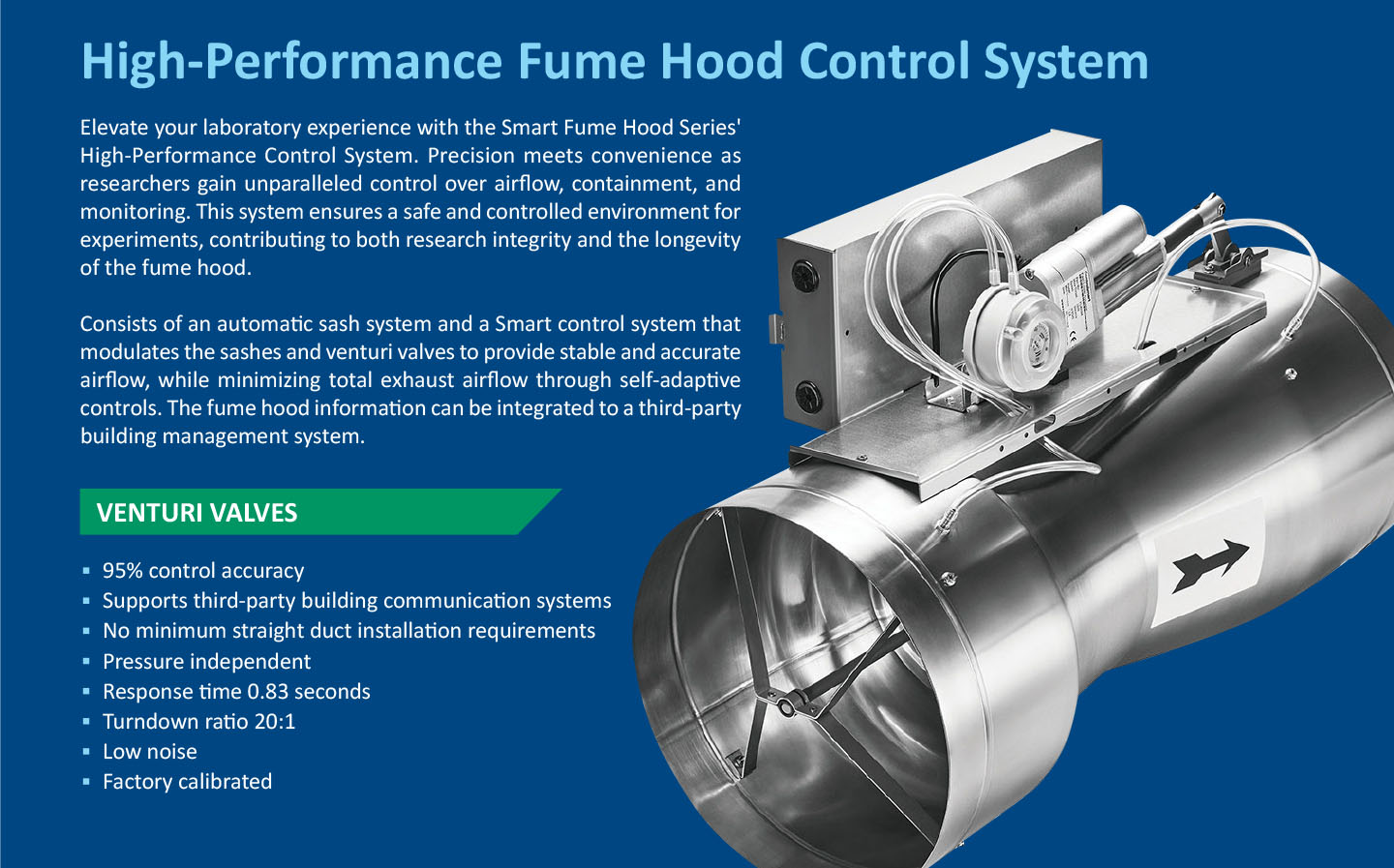

High-Performance Fume Hood Control System Elevate your laboratory experience with the Smart Fume Hood Series' High-Performance Control System. Precision meets convenience as researchers gain unparalleled control over airflow, containment, and monitoring. This system ensures a safe and controlled environment for experiments, contributing to both research integrity and the longevity of the fume hood. Consists of an automatic sash system and a Smart control system that modulates the sashes and venturi valves to provide stable and accurate airflow, while minimizing total exhaust airflow through self-adaptive controls. The fume hood information can be integrated to a third-party building management system. VENTURI VALVES - 95% control accuracy . Supports third-party building communication systems . No minimum straight duct installation requirements · Pressure independent . Response time 0.83 seconds · Turndown ratio 20:1 . Low noise . Factory calibrated

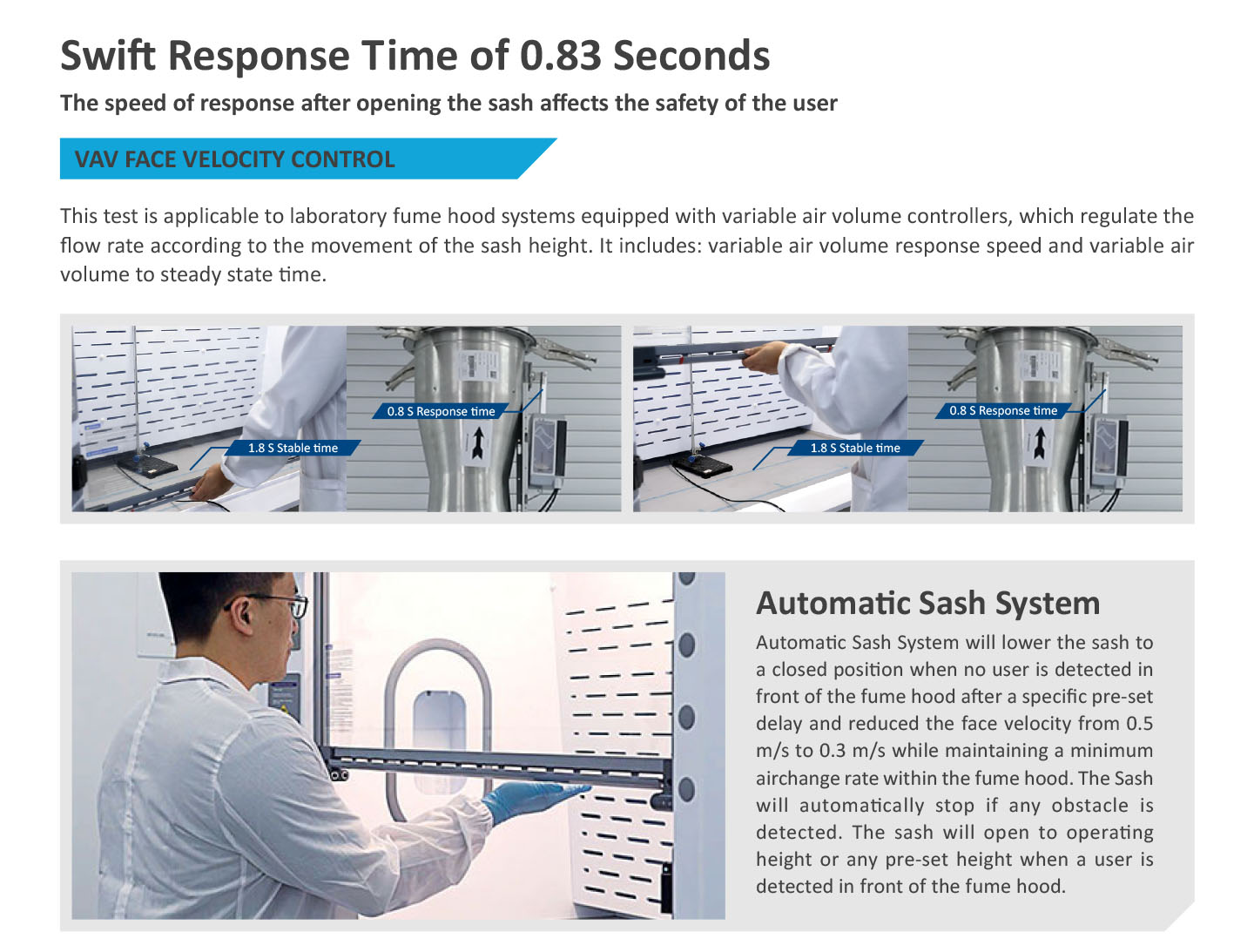

Swift Response Time of 0.83 Seconds The speed of response after opening the sash affects the safety of the user VAV FACE VELOCITY CONTROL This test is applicable to laboratory fume hood systems equipped with variable air volume controllers, which regulate the flow rate according to the movement of the sash height. It includes: variable air volume response speed and variable air volume to steady state time. Automatic Sash System Automatic Sash System will lower the sash to a closed position when no user is detected in front of the fume hood after a specific pre-set delay and reduced the face velocity from 0.5 m/s to 0.3 m/s while maintaining a minimum airchange rate within the fume hood. The Sash will automatically stop if any obstacle is detected. The sash will open to operating height or any pre-set height when a user is detected in front of the fume hood.
Support Testing Service On-site Al/AU testing services are available to ensure the safe operation of fume hoods in the working environment Factory Certification Our fume hood testing facilities have a comprehensive ventilation system setup to meet the requirements of fume hood testing experiments Fully adjustable exhaust system to control face velocity and exhaust volume accurately Supply, exhaust and door locations can be created to simulate their effects on fume hood face velocity Smoke generation equipment can display airflow pattern in any situation Prototypes and new designs are subjected to this rigorous testing Upon request, technicians will test samples of standard fume hoods under specific and unique operating conditions Fully calibrated, commissioned, tested and ready for use when connected to a power supply

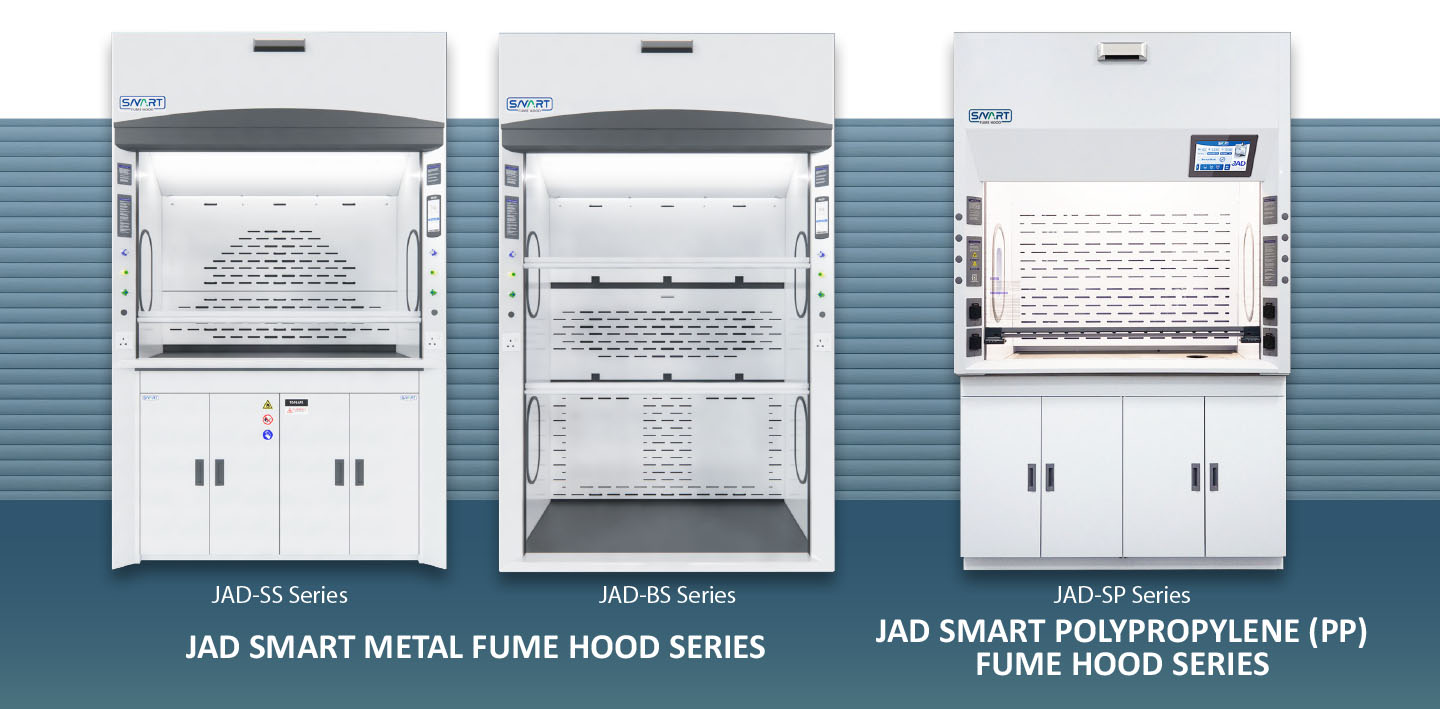

JAD SMART METAL FUME HOOD SERIES JAD SMART POLYPROPYLENE (PP) FUME HOOD SERIES
Download Catalog

Note: All specifications are subjected to changes without prior notice.
