JAD SOLUTIONS    Everything Under Control Specialist in multi-discipline environmental control solutions.

Our Company


Our Products

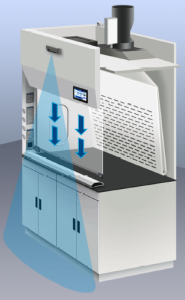

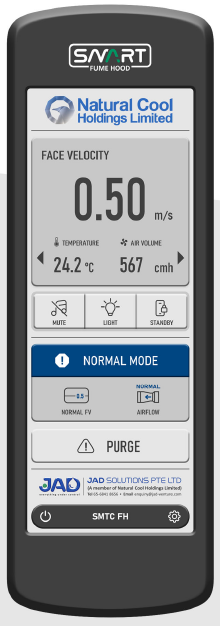

Smart Hood Controller

The SHC-5000 Smart Hood Control System is part of the Smart Series Lab control system, providing variable volume control for fume hoods based on sash position. The basic SHC system consists of sash position sensors, a face velocity controller/alarm annunciator (HMI), and a variable volume venturi air valve. The face velocity controller is typically mounted on the venturi valve. The sash sensor is mounted on the hood and attached to the sash. A factory-calibrated variable venturi valve provides accurate and stable exhaust airflow control. The operator interface (HMI) is mounted on the front of the hood to confirm safe hood operation, alert the user of potential system malfunctions, and provide manual override functions. The SHC-5000 control system accepts sash sensor input and controls the fume hood exhaust air flow to maintain a constant face velocity instantaneously within a second from any sash position changes within a ±5% airflow accuracy. The fully distributed microprocessor-based controller of the SHC-5000 system is capable of operating other airflow and PID control loops in the lab. One SHC-5000 control system is required for each fume hood for maximum user safety.

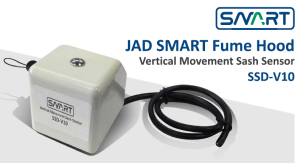

Smart Sash Detector

JAD Smart Sash Detector SSD-7000 is part of the JAD Smart Series Laboratory System used in the fume hood exhaust system. The SSD-7000 detect the sash position and combine with SHC-5000 Smart Hood Control calculate the sash area opening and determine the appropriate fume hood exhaust airflow to maintain a constant face velocity. There are typically 3 types of sash detectors, namely Vertical Sash Detector (SSD-V) The vertical sash detectors use a spring return mechanism attached to a 0-10k? potentiometer to detect the sash height position thereby outputting a resistance reading corresponding to the sash height Horizontal Sash Detector (SSD-H) Combination Sash Detector (SSD-C) Horizontal Sash detectors are made up from a transmitter and a sensor strip, as the horizontal sash overlap, the transmitter and sensor strip also overlap thereby changing the resistor readings corresponding to the horizontal sash opening. Combination sash detectors are a combination of the vertical sash detector and horizontal sash detector. Both the SSD-V and SSD-H signals are captured in SSC-0801 controller for computing and outputing an overall sash opening signal to the SHC-5000 Smart Hood Controller.

Variable Venturi Air Valve

The Smart Valve is a factory calibrated, easy to install and commission venturi air flow control valve. It provides fast-acting, stable and precise airflow control of fume hood exhaust, general exhaust and supply air for labs, vivaria and cleanroom applications. Smart Valve uses a mechanical pressure independent regulator that decouples the pressure independence function from the air flow control function. As long as the differential pressure across the valve is in the range of 150 to 750 Pa, the valve will respond to any air flow changes within less than 1 second with an accuracy of ±5% of the commanded value. The Smart Valve is orientation sensitive. The valve must be ordered for horizontal, vertical UP, vertical DOWN orientation. Every Smart Valve is factory calibrated using 0.5% accuracy instrumentation traceable to NIST using a 50 points characterization curve. Every Smartvalve is identified by a unique serial number and its minimum and maximum capacity. It can be ordered calibrated to the minimum and maximum operating flows for its specific application, assuring speedy system start up and commissioning. The Smart Valve is a fully distributed microprocessor-based intelligent air terminal with multiple inputs and outputs. It provides zone air flow control based on room pressurization, temperature, relative humidity, dilution ventilation and air quality. The air flow control of VVA & SVA venturi valves is via standalone loop, from a room controller or from a Building Automation System. Each variable venturi valve is factory calibrated to respond to an input command corresponding to the desired air flow. An optional air flow sensor is available to verify the air flow. The Smart Valve is particularly well suited for laboratories, pharmaceutical clean rooms, vivaria, healthcare facilities and in HEPA filter application where flow control is critical to system performance.

Variable Venturi Box

The Smart SVB/VVB Venturi Box is a factory calibrated, easy to install and commission venturi type air flow control terminal. It provides fast-acting, stable and precise airflow control of supply, return and exhaust air for cleanroom, vivaria and labs applications. Smart SVB/VVB is ideal in supply and return air application where duct insulation and condensation are important. The twin skin construction with 20mm thick fiberglass insulation has excellent thermal insulation effect, it also improve the attenuation of discharge sound levels. The air stream is also isolated from the fiberglass insulation through a layer of puncture-proof sheet metal interior skin. Smart SVB/VVB is suitable for use with square / round inlet and square outlet for easy airflow connection and distribution. A standard single point electrical main power connection is provided. Electronic controls and electrical components are located on the casing for quick access, adjustment, and trouble shooting. Smart SVB/VVB uses a mechanical pressure independence regulator that decouples the pressure independence function from the air flow control function. As long as the differential pressure across the box is in the range of 150 to 750 Pa, the box will respond to any air flow changes within less than 1 second with an accuracy of ±5% of the commanded value. The venturi box is orientation sensitive. The venture box must be ordered for horizontal, vertical UP, vertical DOWN orientation.

Occupancy Detector

JAD Smart Occupancy Status Detector OSD-7000 is part of the JAD Smart Series Laboratory System used in the fume hood exhaust system. The OSD-7000 can save up to 40% of unnecessary conditioned air exhaust just by detecting the presence of user in front of the fume hood and sending a signal to the SHC-5000 Smart Hood Control to adjust the fume hood exhaust airflow. JAD Smart Occupancy Status Detector OSD-7000 creates a detection zone in front of each individual fume hood, thereby only user using the particular fume hood will be detected. Whenever a user is detected in front of the fume hood, the SHC-5000 Smart Hood Controller will ensure a 0.5 m/s face velocity is maintain according to ASHARE 110-2006 standard. The OSD-7000 couples with the SHC-5000 lower the fume hood face velocity to 0.3 m/s whenever the fume hood is not in used thereby saving more than 40% of conditioned air exhaust. The energy saved through this simple control can be quite substantial as study shows that more than 80% of the time in a day, there is no user presence. The OSD-7000 can work in conjunction with the ASC (Automatic Sash Closer) to further reduce the unnecessary conditioned air exhaust by closing the sash automatically to its minimum height when no user is presence in front of the fume hood, thereby reducing the airflow required to maintain either a 0.5 m/s or 0.3 m/s fume hood face velocity.

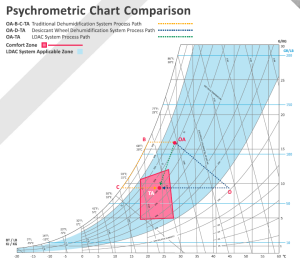

ASC Liquid Desiccant Dehumidifier & Air Conditioning System

High-Efficiency Industrial Dehumidification

High-Efficiency External Air Dehumidification

Energy-Efficient Heat Pump Drying

Stable Management
+ Easily operated and maintained with one start/stop key and a modular design, complete with a PLC microcomputer operating and early warning system.
+ No complex moving parts or mechanical design— the system is driven by only five components: fans, pumps, industrial-grade Copeland compressor (optional).
+ Effectively reduce burden on electrical equipment using advanced dehumidification technology with a selfcleaning function, round-the-clock operability, and long lifecycle.

Flexible and Efficient Installation
+ 3.5 times lifecycle and 30%-40% lower long-term operating costs than traditional air-conditioning, and 55%- 65% lower than standard systems, and can be powered by electricity, exhaust heat (cold) source, renewable energy and heat pump.
+ Directly replace old air-conditioning systems or supplement existing ones.

Safer Operation
+ Environmentally friendly technology uses natural energy-saving dehumidification solutions and prevents moisture dissipation and evaporation without worrying about safety regulations—sustainable, environmentally-friendly, zero-loss, and zero-pollution.
+ Solution-based dehumidification air-conditioning systems achieve precise humidity control and balanced energy consumption through the introduction of external air, and improves air quality by filtering 99% of viruses, bacteria, microbes, dust, odor, AMC, etc. In addition, it also can inhibit 100%of mold growth, ensure indoor CO2 concentration at lower level and improve health of operator.

Improved Functionality
+ Independently adjust temperature and humidity (both humidification & dehumidification) rather than rely on traditional energy-inefficient air-conditioning that uses low temperature to reduce humidity. Solutionbased dehumidification is a powerful tool to precisely control the humidity.
+ Achieve remote management and control using international open standard in communication protocol.

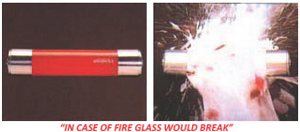

Bonpet Automatic Fire Extinguisher

Features
+ No maintenance required during the lifespan of 10 years.
+ Non-toxic for people, animals or plants, and it does not have any harmful effects on the environment.
+ Anybody can use it without the need for special training.
+ Light in weight and therefore enable the user to take and throw the ampoule at the fire as far as 30 feet or more, depending on the strength of the arm.
+ It is ecological product, bio-degradable and it does not decrease the ozone.
+ It does not depend on the external sources of electrical energy or pressure.
+ It is guaranteed for a period of 10 years, its chances to turn into out of work or lose the inner properties are nil.
+ The BONPET design does not have any effect on the aesthetical part of the space where it is placed.
+ It is non-corrosive.

Our Projects

DNV GL H2S and Material Testing Laboratory @ 158A Gul Circle Singapore 629616

Completed In March 2014, For Our Client DNV GL

Design and Build of H2S Sour Lab and Material Testing Laboratory over 1200sqm operating in a new building over 5500 sqm.

Koywa Hokka Kirin @ Biopolis Helios Level 5 unit 08/09

Completed In September 2014, For Our Client Koywa Hokka Kirin

Additions & Alterations for a 390 m2 Office and Biosafety Laboratory .

Raffles Hospital @ 585 North Bridge Road Singapore 188770

Completed In March 2013, For Our Client Raffles Hospital

Additions and Alterations to Level 7 Isolation Room 702/703.

Completed In January 2015, For Our Client Raffles Hospital

Amendment and Alteration to Level 9 BMT Protection Ward.

Nanyang Technological University Laboratories & Offices at CleanTech Park 1

Completed In December 2012, For Our Client Cyberlab

Additions and alterations of laboratories & offices at cleantech park 1 for nanyang technological university.

Customised 47 sets of fume hood controls for Fisher Hamilton fume hood.

Nanyang Technological University Block N2 Basement 3 section C for Earth Observatory Science

Completed In May 2013, For Our Client Natural Cool

Additions and Alterations of Laboratories at Nanyang Technological University Block N2 Basement 3 section C for Earth Observatory Science.

Design and Build 250metre/sq of Laboratories including a Class 1000 Non Metallic Clean Room with PP fume hoods and furnitures.

Nanayang Technological University at School of Biological Science Level 2 Unit 01 CryoEM Lab

Completed On September 2013 For Our Client SMM

Additions and Alterations of Laboratories & Offices at Nanayang Technological University at School of Biological Science Level 2 Unit 01.

Construction of a Sate of the Art Cryo-Electron Microscopy Laboratory with Offices over a 280m˛ area .
Ntu Boosts Life Sciences Research With Launch Of State-Of-The-Art Electron Microscopy Lab

Lee Kong Chian School of Medicine at Nanayang Technological University at RTP X Frontier Level 4

Completed On August 2012, For Our Client KJS Construction

Additions and Alterations of Laboratories & Offices to Lee Kong Chian School of Medicine at Nanayang Technological University at RTP X Frontier Level 4.

Construction of a Temporary Research, Teaching Laboratories and Offices over 1000 m2 spaces
Lee Kong Chian School of Medicine

Completed On August 2014, For Our Client KJS Construction

Additions and Alterations of Laboratories & Offices to Lee Kong Chian School of Medicine at Nanayang Technological University at RTP X Frontier Level 4.

Construction of a Laboratories and Offices for Centre for Disruptive Photonic Technologies over 430 m2 of spaces.
Centre for Disruptive Photonic Technologies

Conversion of Existing Carpark to Laboratories & Offices on Part 2nd Storey of School of Physical & Mathematical Sciences at Nanyang Technological University

Completed On August 2014, For Our Client KJS Construction

Construction of a Laboratories and Offices for Centre for Disruptive Photonic Technologies over 430 m2 of spaces.
Centre for Disruptive Photonic Technologies

Conversion of Existing Carpark to Laboratories & Offices on Part 2nd Storey of School of Physical & Mathematical Sciences at Nanyang Technological University

Completed On January 2015, For Our Client KJS Construction

Construction of a Laboratories and Offices for Create, Peking & CRP over 520m2 of spaces.


Our Services

Design High Containment Facilities

Buid High Containment Facilities.

Laboratory Design

Laboratory Setup Consultancy

Laboratory ACMV

Laboratory Control Maintenance

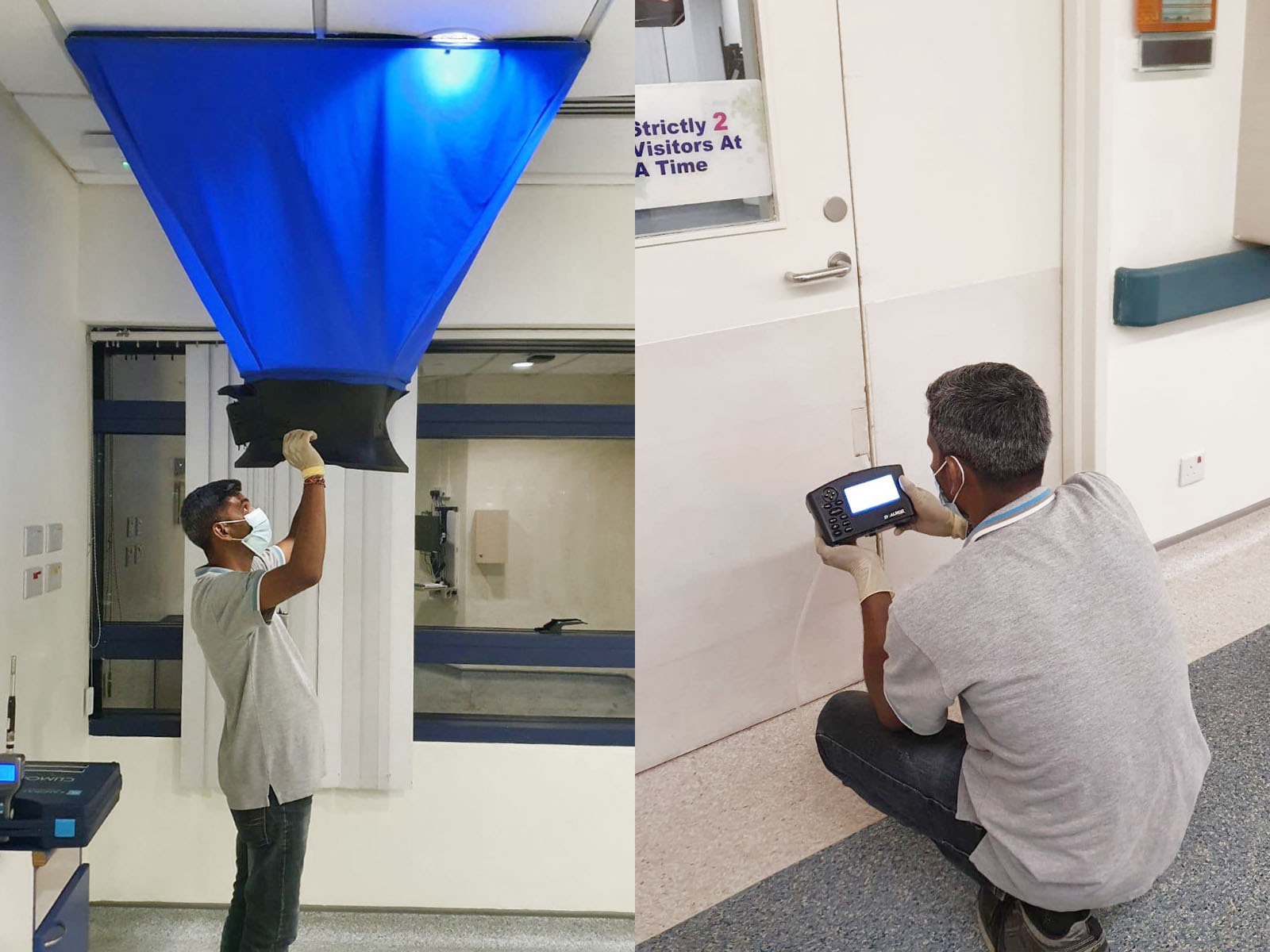

Airflow Balancing

Airflow Commissioning

Laboratory Fit out

M&E Lab Furiture, Fumehood Bc, Snorkel & More

Nebb Approved Certifier

AHRAE 110-2006 Fume Hood Testing

and more...

JAD Solutions provides uniquely customised solution for each and every client.
Want a hassle-free, reliable and cost effective solution?
Lets Build A Solution today.
Business Contact +65 9366 9050
Office +65 6841 8656
Fax +65 6858 2098
Email enquiry@jad-venture.Com

Address
126 Joo Seng Road
Gold Pine Industrial Building #05-14
Singapore 368355
